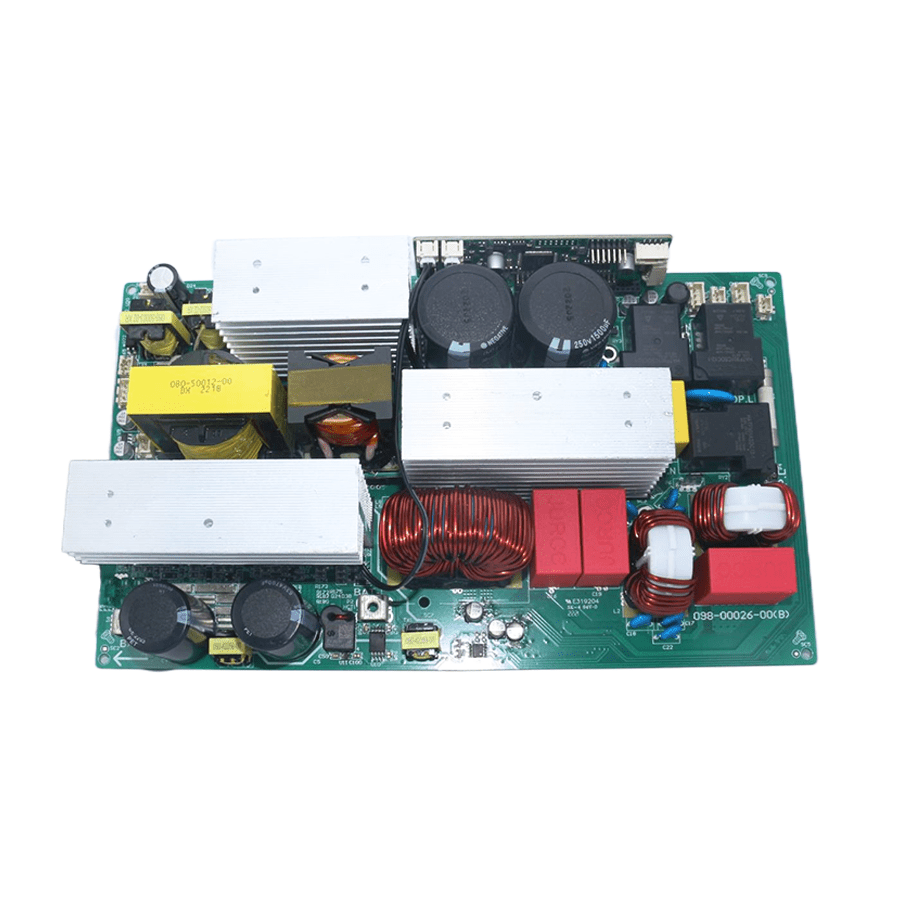

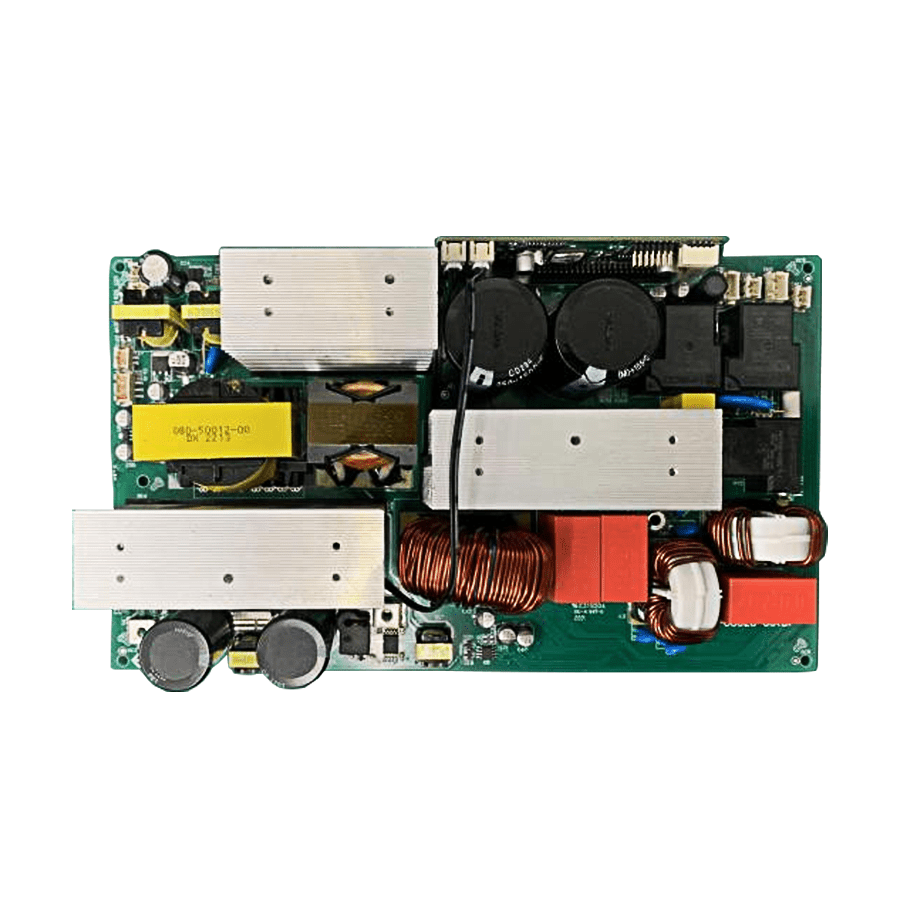

2500W Bidirectional Inverter Board | AC-DC Energy Storage

Key Features of the 2500W Bidirectional Inverter Board

Our 2500W bidirectional inverter board is engineered for high-power energy storage applications. Here are its standout features:

• ✓ Two-Way AC-DC Conversion – Seamlessly switches between inverter (discharge) and charger (charge) modes, maximizing system efficiency

• ✓ High Power Capacity – 2500W continuous, 4000W peak power — enough for most household appliances and tools

• ✓ High Efficiency – Achieves 91% efficiency in both directions, minimizing energy loss

• ✓ Dual Battery Compatibility – Supports both lithium-ion batteries and lead-acid batteries

• ✓ Built-in Protection – Over-voltage, under-voltage, over-current, short circuit, and over-temperature protection

• ✓ Fast Switching – High-speed bidirectional switching for seamless power management

• ✓ Compact Design – At 158 x 60 x 270 mm, this inverter PCB packs high power into a manageable footprint

What Is a Bidirectional Inverter Board?

A bidirectional inverter board, also known as a two-way inverter or hybrid inverter board, combines the functions of an inverter and a charger in one circuit board. It enables power to flow in both directions:

• DC → AC (Discharge mode): Converts battery DC power to AC power for running household appliances, tools, and electronics

• AC → DC (Charge mode): Converts grid or generator AC power to DC power for charging lithium or lead-acid batteries

This integration eliminates the need for separate inverter and charger units, saving space, weight, and cost — making it the core component for battery energy storage systems (BESS).

What Can a 2500W Bidirectional Inverter Run?

This 2500W energy storage inverter is powerful enough to handle most household appliances and tools. Here’s what you can run:

With 4000W peak power, this bidirectional inverter can handle startup surges from motors, compressors, and refrigerators without tripping.

Who Is This 2500W Bidirectional Inverter For?

This hybrid inverter board is designed for:

• Home Energy Storage – Build a complete home battery system to store solar energy for nighttime use or backup during outages

• Off-Grid Solar Systems – Perfect for cabins, workshops, or remote properties where grid power is unavailable

• Large Portable Power Stations – Create a high-capacity solar generator for camping, RVs, or emergency backup

• OEM/ODM Developers – Integrate this AC-DC inverter into your own product designs for energy storage applications

• EV Charging Solutions – Use as part of a vehicle-to-home (V2H) or vehicle-to-grid (V2G) system

Which Bidirectional Inverter Should You Choose? 700W vs 2500W

Hzinverter offers two bidirectional inverter boards to suit different energy storage needs. Use this comparison to find the right fit for your project:

Not sure which one fits your needs? Contact our team for personalized recommendations.

Applications: Where Can You Use This 2500W Bidirectional Inverter?

2500W Bidirectional vs. Standard Inverter: What’s the Difference?

Frequently Asked Questions

What’s the difference between a bidirectional inverter and a hybrid inverter?

They are often used interchangeably. A bidirectional inverter refers specifically to the two-way power conversion capability. A hybrid inverter typically adds solar MPPT charging. Our board focuses on AC-DC bidirectional conversion, ideal for battery storage systems.

Can this 2500W bidirectional inverter charge lithium batteries?

Yes. This lithium battery inverter is designed to safely charge both lithium-ion and lead-acid batteries. Proper charging parameters should be configured according to your battery specifications.

Do I need a separate solar charge controller?

If you’re using solar panels, you’ll still need a separate solar charge controller (MPPT or PWM) to regulate solar input to your battery. This board handles AC-DC conversion and inverter functions.

What can I run with 2500W continuous power?

You can run most household appliances simultaneously, including a refrigerator (600-800W), microwave (1000W), TV (100W), and lights (100W) — all at once. For larger loads like air conditioning or well pumps, check the startup surge.

How does peak power work?

This 4000W peak power rating means the inverter can handle short bursts of high power (typically 1-3 seconds) for starting motors, compressors, and refrigerators. Continuous loads must stay under 2500W.

Can I use this for a whole-home backup system?

Yes. With proper battery bank sizing, this energy storage inverter can serve as the core of a home backup system. For larger homes or whole-house coverage, consider parallel units or our higher-power models.

Why Choose Hzinverter’s Bidirectional Inverter Board?

• 10+ Years of Manufacturing Experience – Factory-direct quality with proven reliability

• Integrated Design – Combines inverter and charger in one compact inverter PCB, reducing system complexity

• High Power, High Efficiency – 2500W continuous with 91% efficiency in both directions

• Strict Quality Control – Each board undergoes testing for efficiency, protection features, and thermal performance

• OEM/ODM Support – Customize with your own branding or integrate into larger systems

• Global Shipping – Fast, reliable delivery from our China factory

Get Your 2500W Bidirectional Inverter Board Today

Ready to build a powerful energy storage system? This 2500W bidirectional inverter board is in stock and ready to ship. Whether you need a two-way inverter for home backup, a hybrid inverter board for an off-grid solar system, or a core component for an energy storage project, Hzinverter delivers quality and performance.

Contact us for bulk orders or OEM inquiries.
